Sheet Metal Fabrication
Enclosures, panels, chassis, brackets and covers — laser cut, punched, bent, welded and finished to your drawing, through fabrication partners we have worked with for years.
Processes
- Cutting — fibre laser cutting of sheet and tube, plus CNC punching, straight from DXF/DWG.

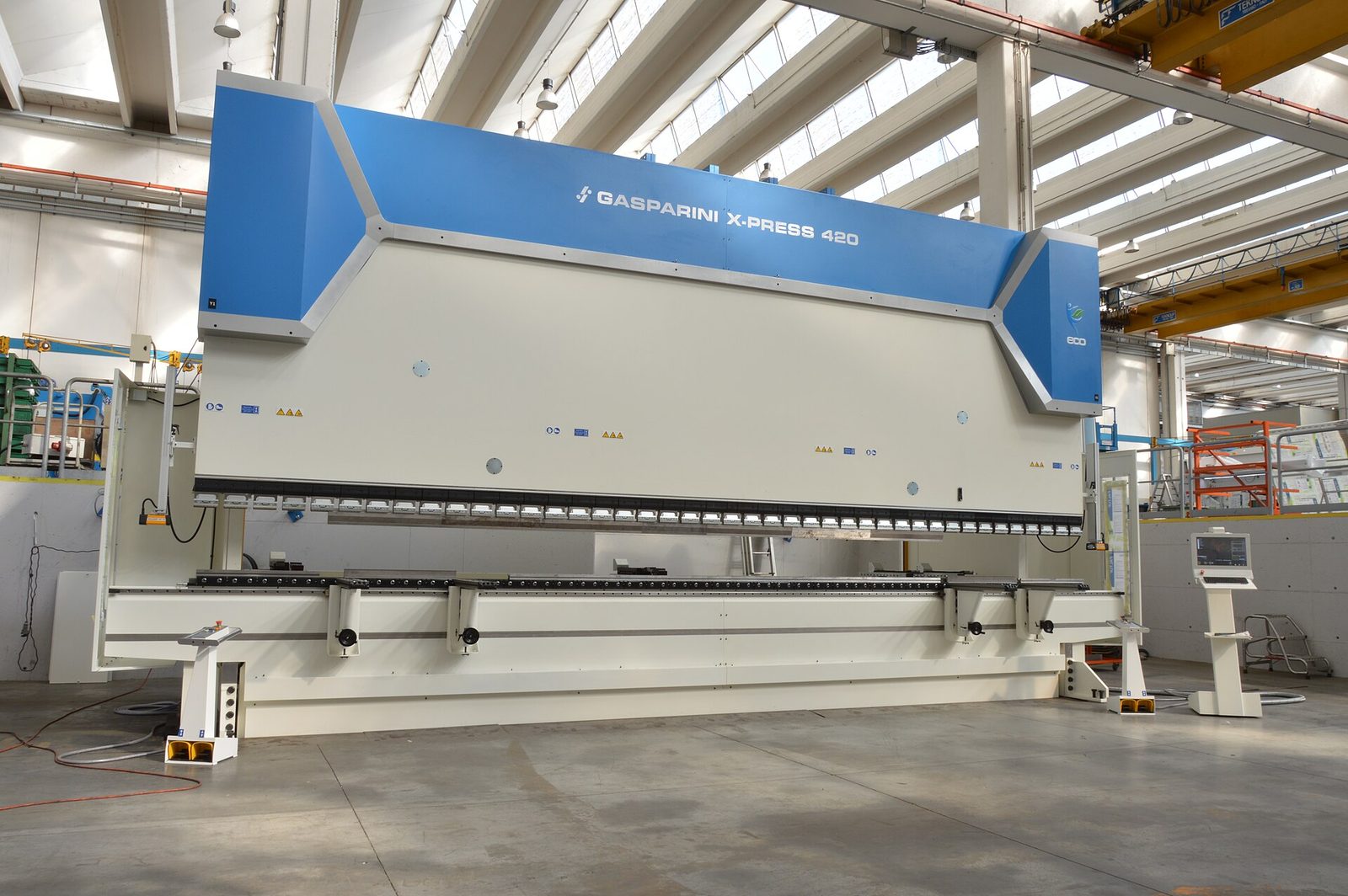

- Forming — press-brake bending (90°, V, U, step, hemming), rolling, embossing and louvres.
- Chassis & frame fabrication — custom machine chassis, equipment frames, skids, trolleys and guarding built from tube and section, jig-welded and squared.
- Joining — MIG / TIG / spot welding, tube and section welding, riveting, PEM hardware insertion (nuts, studs, standoffs).
- Finishing — powder coating, zinc plating, galvanising, anodising, silkscreen and laser marking.
Capabilities
- Sheet thickness 0.5 – 6 mm (up to 12 mm structural plate on request).
- Cutting tolerance ±0.1 – 0.25 mm; bend angle ±0.5°; bend length ±0.25 mm.
- Bed size up to 1500 × 3000 mm; press brake up to 3 m.
- Materials: CRCA, HR, galvanised steel, SS 304 / 316, aluminium 5052 / 6061, brass, copper.
Design tips that cut cost
- Keep holes at least (thickness + bend radius + 1 mm) away from bend lines.
- Standardise hole sizes and bend angles so the same tooling is used throughout.
- Ask for a flat-pattern check if you are unsure about K-factor — we do this free at quoting.
Ready when you are.
Send a drawing and we'll quote within one working day.
