Capability
Precision Machining
Grinding, wire-cut EDM and honing for the features that need to hold tighter than a mill can manage.
Draft content. Numbers below are typical industry capabilities pulled from reference sites — confirm against what our toolroom and partners can actually hold before launch.
Processes
- Cylindrical & centreless grinding — shafts, pins, spindles to h6 / h5.

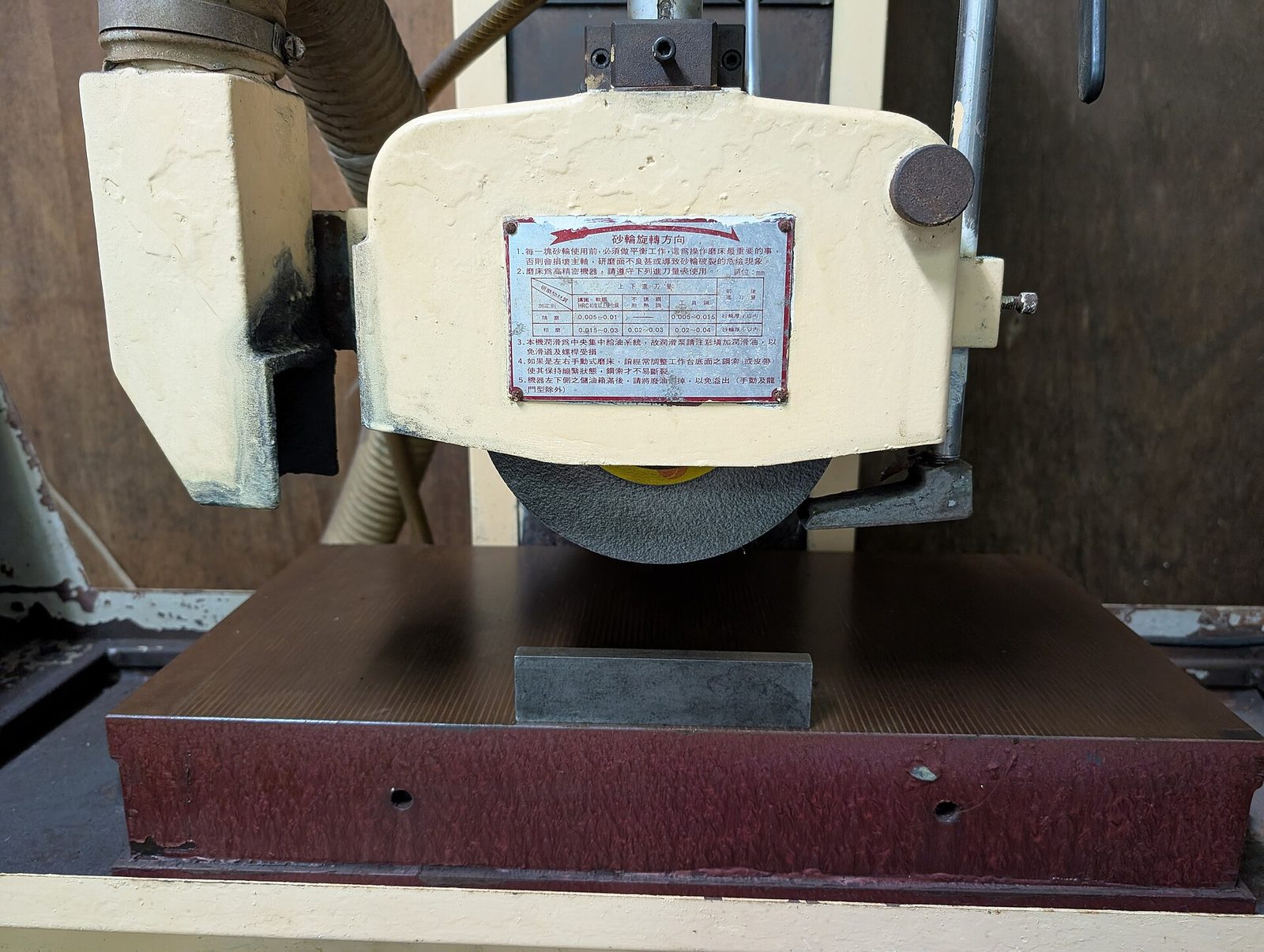

- Surface grinding — plates, blocks, die components to ±0.005 mm flatness/parallelism.
- Wire-cut EDM — profiles, splines, keyways, die apertures in hardened steel.
- Honing — bores and seal faces to Ra 0.2 µm.
Typical tolerances
- Dimensional ±0.01 mm; ±0.005 mm on selected features.
- Roundness / cylindricity 0.005 mm.
- Surface finish Ra 0.4 µm ground, Ra 0.2 µm honed.
Inspection
Micrometer, bore gauge, height gauge and surface-plate checks as standard; CMM and roughness reports on request.
Ready when you are.
Send a drawing and we'll quote within one working day.
